[PConline evaluation] since the last evaluation of the use of the new silver shark radiator design GTX1080, many users have commented that the colorful value of the Rainbow card a lot higher, the GTX1080Ti release, Colorful is also responding to the views of the majority of players Continue to use this design, today let us take a look at this piece: Colorful iGame GTX1080Ti Vulcan AD.
Colorful iGame GTX1080Ti Vulcan AD Reference price: Loading... Image reviews Quote parameter overview
Continuation of the silver shark design, the price pleasing, the frequency is not low!
The appearance of colorful iGame GTX1080Ti Vulcan AD continued the previous seven Rainbow iGame1080 flames Ares X-8GD5X Top AD's exterior design, silver metal shroud, the middle of a metal red circle, and then with a large three fans.
The high-strength blackened metal backplane with "IGAME" logo printed in the middle, the appropriate hollow design can enhance the thermal performance of the graphics card.
The overall card size is 300×98×50mm. The conventional three-fan graphics card length is the only difference from the previous colorful iGame1080 Flame Wars X-8GD5X Top AD in that it is printed with a “GEFORCE GTX†logo on the top!
External power supply is 8+8Pin, 2Pin more than the public version, born for overclocking!
The video output interface of this rainbow also added a DVI interface (public version is not), in addition, it is also equipped with three DP interface and an HDMI interface, I/O this piece according to the rainbow's convention also equipped with a One-button OC button!
Through iGame-Zone software, this product LED lamp can be used for various custom lighting effect adjustments to meet the individual needs of the user, give us a light effect diagram!
Can it be okay? In fact, if the three fans are made into the same RGB lighting effect as the middle will not be more shocking? Laugh~
The logo lamp on the top of the graphics card is also RGB, see the specifications below!
Colorful iGame GTX1080Ti Vulcan AD Specifications Comparison
Specifications: Specifications, Colorful iGame GTX1080Ti Vulcan AD's biggest highlight is in the core frequency, the core frequency of the machine is 1595-1709MHz; better than some non-public GTX1080Ti products on the machine frequency should be high; and more importantly, electricity providers offer Only 5899 yuan, if there is a PLUS member of the East Side, then you can enjoy the special price of 5699 yuan, is definitely one of the cheapest non-public GTX1080Ti currently on the market! Simply! ! !
5 heat pipe three fans, strong heat dissipation; 8 + 2 phase power supply, luxury materials!This card is not difficult to remove, 5 screws a unloading, finished ~
Radiator specifications are almost the same as those of GTX1080 before, or 4×8mm+1×6mm pure copper heat pipes take 2×9cm+1×8cm fans; only the radiating fins are increased by 5mm, and the total heat dissipation area is increased by 30%. The effect will be better than before.
The power supply solution still uses 8+2 phase IPP digital power supply; with self-developed IPP (iGame Pure Power) to pure power supply inductors, one-piece structure, low DC impedance, application frequency 5MHz, high electronic impedance, ultra-low operating temperature and lower EMI electromagnetic interference and other characteristics.
At the same time, the use of SPT over silver plating technology, 2 times the oxidation resistance and stability of copper plating PCB better, effectively extending the life of the graphics card to enhance the stability of players in the process of overclocking, smaller impedance to prevent circuit blockage, reduce Small waste heat generation improves signal integrity and reduces electromagnetic interference.
The core code is GP102-350-K1 A1, GDDR5X memory chips, single capacity 1GB, a total of 11, 11G memory capacity, memory bandwidth 352Bit, bandwidth 502GB/s!
Share a one-touch OC button and see the performance test next.
3DMark Theory Test and Game Performance TestNVIDIA GTX 1080Ti
NVIDIA GTX TITAN X
NVIDIA GTX 1080
NVIDIA GTX 980Ti
AMD R9 Fury X
AMD Crimson Edition 17.3.3
Test Platform Description: The test platform is a mainstream consumer platform Z270+i7 7700K. A total of six graphics cards were selected for comparison testing. The driver is the latest A/N graphics driver. (To optimize the form, Rainbow iGame GTX1080Ti Vulcan AD is abbreviated as Colorful GTX1080Ti in the table below.)
3DMark theory testIn addition to the two FireStrike Ultra & Extreme tests that we commonly use, 3DMark Theory Test adds 3DMark's latest DirectX 12 benchmark for game PCs, Time Spy, to provide a more comprehensive reference for everyone.
Theoretical test summary: Just look at the performance of 3DMark theory performance, colorful iGame GTX1080Ti Vulcan AD than the public version of the upgrade is about 5-6% or so; can not be said that the promotion is very big, but everyone also knows Pascal after the non-public and public version of the gap This way, which are similar.

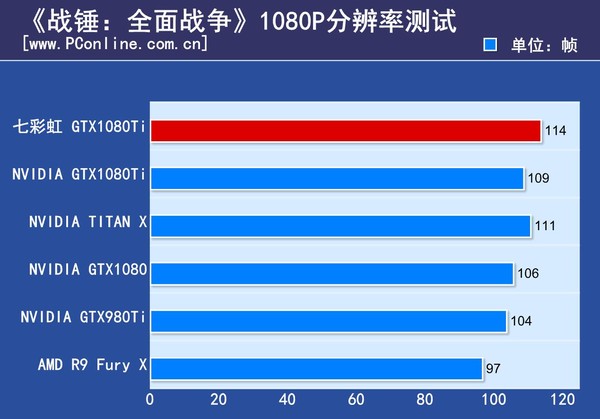

Game performance testThe future is undoubtedly the world of DX12. In this test, we selected 6 representative DX12 game masterpieces. Among them, there are many native killer 6s, Tomb Raider 10, and Warhammer: Total War support DX12. "Outbreak: Human Breaking" and the latest "Phantom Operation: Wilderness" and later "Blockade" for DX12.
Test summary: The number of frames in the actual game experience is basically beyond the public version of 3-7 frames (depending on the game), the performance of the ultra-public version is certainly nothing to say. From the game performance point of view, this card's positioning is to meet the needs of 1080P to 4K resolution, the highest quality smooth running of all games, after all, card Emperor it!
Platform power testIn order to get closer to the real scenes in the player's daily application and to more fully understand the power consumption of the iGame GTX1080Ti Vulcan AD, we will use three application scenarios to measure the power consumption of the platform, namely the 3DMark stress tester and games. Copy machine and standby mode.
Power consumption test summary: As a non-public version, Colorful iGame GTX1080Ti Vulcan AD's overall power consumption is higher than the public version of about 50-60W, standby power consumption is quite a; a 600W power supply is sure to bring!
Video card temperature testTo test the temperature limit under the radiator, we used the 3DMark stress test to test.
Test summary: At room temperature 26 °C, Colorful iGame GTX1080Ti Vulcan AD copy machine maximum temperature of 75 °C, lower than the public version of the radiator 9 °C; performance is not bad!
Card noise testHere we measure the fan noise when the noise test card runs 3DMark stress test at full load.
Test summary: The fan noise was 56.5 decibels when recording, and it was close to the volume of a soft-spoken conversation in a normal room. It was quiet and it would be better to put it into the chassis.
About noise:
0 - 20 db: very quiet, almost imperceptible; 20 -40 db: quiet, like whisper; 40 - 60 db: normal general indoor conversation; 60 - 70 db: noisy: denervated; 70 -90 db: Very noisy, nerve cells are damaged. 90 - 100 db: Intensified noise, impaired hearing; 100 - 120 db: Unbearable, one minute or temporary deafness. 120 decibels or more: Extremely paralysed or fully paralyzed; 300 decibels or more: People with a radius of 20 km cannot repair deafness.
Ladder Diagram: There is no doubt that the colorful iGame GTX1080Ti Vulcan AD is on the public version of GTX1080Ti and TITAN X.
PConline evaluation room summary
Colorful iGame GTX1080Ti Vulcan AD Reference price: Loading... Image reviews Quote parameter overview
As Rainbow's mainstream non-public GTX1080Ti products, iGame GTX1080Ti Vulcan AD is the main cost-effective, performance, it is a small super-public version, the price is basically the lowest commercially available (5699 yuan), while cooling and workmanship and even the value is very circle It can be a point; this makes it quite competitive in non-public GTX1080Ti products.
From the current market non-public GTX1080Ti the overall price point of view, there is generally a trend of small profits but quick turnover, most AIC's mainstream products are priced at 5999 yuan; this is related to GTX1080Ti chip supply is sufficient, not like GTX1080 just released At that time, strange goods can live, and prices remain high.
In a sense, this is good for the majority of players, and those who want to reach high-end players in one step, you are blessed! Only 5699, single core card emperor hold home! Laugh~
1, the machine frequency is high, the performance of ultra-public version
2, 5 heat pipe three fans, strong heat dissipation
3, 8+2 phase power supply, luxury materials
4, cool RGB lighting effect, APP controllable, high value
5, 11G large memory, Fun 4K, VR no pressure
6,5699 price pleasing, the city's lowest selling price non-public
