BenQ recently launched an upgraded version of the 1080P home projector W1120, with excellent audio and visual performance to the user left a deep impression. Following the CinematicColor color tuning technology, faithfully presenting the original color of the movie is a consistent standard for BenQ's home projectors. BenQ's high-end models can often see the ISF and THX certification. The brands that can receive this certification can be counted in the industry with one hand. This time, the one responsible for W1120 color tuning is to obtain ISF and THX professional audio and video organization dual certified team of engineers.
There is no doubt that color is the strength of W1120
The strength of the home projector W1120 is undoubtedly the color. Toning, it used BenQ CinematicColor color tuning technology, follow the Rec.709 international standards for accurate color adjustments; hardware, W1120 built-in six-speed six-speed color wheel, its color expression is more powerful, bright Without dazzling, the entire screen is rich in texture.
(W1120 picture real shot map)
(W1120 picture real shot map)
In terms of contrast, the home projector W1120 occupies a certain advantage due to its built-in monolithic DMD chip.
(W1120 picture real shot map)
In the darker environment, the contrast of the moon photograph projected by the home projector W1120 is very good. Although the brightness of the highlighted part is very high, it still has certain details of the lines. The surface of the moon can be seen clearly. At the junction of the moon and the night sky, even rugged terrain can be clearly seen.
Sound becomes a highlight
The audio of home projectors has always been an icing on the cake, and its sound quality is often overlooked, but the audio configuration of the home projector W1120 is stunning enough in its class.
BenQ teamed up with treVolo, a BenQ professional sound team, to create a sound enhancement experience with the CinemaMaster Audio+2 that greatly enhances the W1120's sound experience. At the same time, the treVolo team also fine-tuned the sound according to different situations to meet various entertainment needs. The W1120 is equipped with four sound modes for movies, games, music, and competitions.
The movie mode can provide a wide sound field sound effect, obvious effect on dialogue and sound levels, more detailed on the details of the sound; in the game mode, the hit sound effect in the fighting process is relatively thick and full, and brings a sense of space can make the user very Good immersed in the game; music mode is a good improvement in sound quality, strong performance in the high-frequency, low-frequency part of the full stretch, in particular, the performance of some R & B and soul music is particularly prominent.
With the built-in 10W stereo speaker, whether it is watching movies, playing games or listening to music, the home projector W1120 can meet the needs of users.
Short throw side throws displacement
In a big city like Kitakami, it's quite a luxury to have a large living room. If you want to see a big picture in a small room, a short focal projector is a good choice.

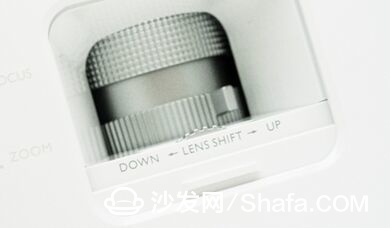

The BenQ W1120 can project 100 frames at 2.5 meters, which is the gospel of a small living room. The lens movement function can move the screen up and down within 10% of the adjustment range. In addition, the lens itself also supports zooming, which facilitates smooth installation in a limited space.
The trapezoidal correction and side projection function further ensure the convenience of installation. Especially for household consumers, the installation no longer requires special technicians to measure and calculate, and the machine's own calibration function can be used.
Home projector W1120 can achieve better brightness but no compromise on color, rich design sense of silver and white appearance can be integrated into all kinds of style home environment, built-in high-quality sound eliminates the need for additional audio, easy installation, space utilization is very flexible. For users with a certain need for large screens in the living room, the W1120 with audiovisual experience is a wise choice.
Smart TV/box information can focus on smart TV information network sofa butler (http://), China's influential TV box and smart TV website, providing information, communication, TV boxes, smart TVs, smart TV software, etc. Answering questions.
1.27mm (0.050") Pitch Female Headers
Like the 1.27mm pitch male header, the 1.27mm pitch female header is used in densely-packed devices, requiring space-saving connections. The low profile, 1.27mm pitch female header addresses the need for connecting a variety of board-to-board configurations, with vacuum pick and place that makes it suitable for high volume automated manufacturing. It can be available in varying elevated stack heights, pass-through, rugged, high-density, and in numerous low-cost designs.
Antenk offers 1.27mm pitch female headers in either SMT or THM orientation at high quality and affordable China-quoted price that snuggly fits with the pins of a male header and acts as a receptacle.
Assembly and service is simple with either vertical (straight), elevated or at a right angle orientation, which can dissipate current of about 1.0 A or less in a tape and reel packaging. The filleted corners can also remove shadowing allowing optimization of LED output.
The 1.27mm pitch female headers are commonly found in PC`s and are also made to work in Arduino boards, Arduino Pro and Arduino Mega with either single or double-row female headers, facilitating connections for programming and incorporation into other circuits. They have the perfect height for clearing the USB-B connector and great for stacking multiple shields.
Female header always called as [Header connector", Antenk provide widely range of header connector, from 2.54mm (.100″ inch) pitch to 1.0mm (.039″ inch) pitch. The number of pins (contacts) is from 2 to 40 pins per orw. There are three type: Straight (Dip Vertical), Right angle, SMT (surface mount).
If you can not find the items you interest from above items, welcome to contact us, and you will always get fully responsive from us.
Applications of 1.27mm Pitch Female Headers
Its small size is most suitable for PCB connections of small equipment and devices such as:
Arduino Boards
Architectural and sign lighting
Retail and display lighting
Fluorescent LED retrofit lighting
Cabinet or furniture lighting
Commercial / residential cove lighting
WiFi equipment
Gaming consoles,
Measurement instruments
Medical Diagnostic and Monitoring equipment
Communications: Telecoms and Datacoms
Industrial and Automotive Control and Test
At one side of this female header is a series of pins which can either be mounted and soldered directly onto the surface of the PCB (SMT) or placed into drilled holes on the PCB (THM).
Through-Hole (Poke-In)
Best used for high-reliability products that require stronger connections between layers.
Aerospace and military products are most likely to require this type of mounting as these products experience extreme accelerations, collisions, or high temperatures.
Useful in test and prototyping applications that sometimes require manual adjustments and replacements.
1.27mm vertical single row female header, 1.27mm vertical dual row female header, 1.27mm Elevated single row female header, 1.27mm Elevated dual row female Header, 1.27mm right-angle single row female header and 1.27mm right-angle dual row female header are some examples of Antenk products with through-hole mount type.
Surface-Mount
The most common electronic hardware requirements are SMT.
Essential in PCB design and manufacturing, having improved the quality and performance of PCBs overall.
Cost of processing and handling is reduced.
SMT components can be mounted on both side of the board.
Ability to fit a high number of small components on a PCB has allowed for much denser, higher performing, and smaller PCBs.
1.27mm Right-angle Dual Row female header, 1.27mm SMT Single row female header, 1.27mm SMT Dual row female header and 1.27mm Elevated Dual Row female Header are Antenk`s SMT female headers.
Soldering Temperature for 1.27mm Pitch Female Headers
Soldering SMT female connectors can be done at a maximum peak temperature of 260°C for maximum 60 seconds.
Pin-Type: Vertical (Straight) and Right-Angle
1.27mm pitch female headers may be further classified into pin orientation as well, such as vertical or straight female header or right-angle male header.
Vertical or Straight Female Header Orientation
One side of the series of pins is connected to PCB board in which the pins can be at a right-angle to the PCB surface (usually called "straight" or [vertical") or.
Right-Angle Pin Female Header Orientation
Parallel to the board's surface (referred to as "right-angle" pins).
Each of these pin-types have different applications that fit with their specific configuration.
PCB Connector Stacking
Profile Above PCB
This type of configuration is the most common way of connecting board-to-board by a connector. First, the stacking height is calculated from one board to another and measured from the printed circuit board face to its highest insulator point above the PCB.
Elevated Sockets/Female Headers
Elevated Sockets aka Stacked sockets/receptacles or Mezzanine are simply stacked female headers providing an exact distance requirement between PCBs that optimizes electrical reliability and performance between PCB boards.
Choosing this type of stacking configuration promotes the following benefits:
Connector Isolation - the contacts are shrouded preventing cable connection mishaps and good guidance for the mating header connectors.
For off-the-shelf wireless PCB module, stacking height is optimized with elevated sockets.
Offers superior strength and rigidity.
Polarisation prevents users from inverted insertion.
Single, Dual or Multiple Number of Rows
For a 1.27mm straight or vertical female header, the standard number of rows that Antenk offers ranges from 1 to 2 rows. However, customization can be available if 3 ,4 or n number of rows is needed by the customer. Also, the number of contacts for the single row is about 2-40 pins while for dual row, the number contacts may vary from 2-80 pins.
Pin Material
The pins of the connector attached to the board have been designed with copper alloy. With customer`s demand the pins can be made gold plated.
Custom 1.27mm Pitch Female Headers
Customizable 1.27 mm pitch female headers are also available, making your manufacturing process way faster as the pins are already inserted in the headers, insulator height is made at the right size and the accurate pin length you require is followed.
Parts are made using semi-automated manufacturing processes that ensure both precision and delicacy in handling the headers before packaging on tape and reel.
Tape and Reel Packaging for SMT Components
Antenk's SMT headers are offered with customizable mating pin lengths, in which each series has multiple number of of circuits, summing up to a thousand individual part number combinations per connector series.
The tape and reel carrier strip ensures that the headers are packaged within accurately sized cavities for its height, width and depth, securing the headers from the environment and maintaining consistent position during transportation.
Antenk also offer a range of custom Tape and reel carrier strip packaging cavities.
Pcb Connector,1.27Mm Female Pin Header,1.27 Header connecto,1.27Mm Pcb Header,1.27Mm Pcb Connector,0.050" Female Headers,1.27mm Female Pin Header SMT, 1.27mm Female Pin Header THT
